A2 Industrial cable gland

A2 Industrial cable gland


A2 Type Industrial Cable Gland suitable for both indoor and outdoor applications, designed for use with all types of unarmoured cables and optionally with braided cables (when termination is supported within the enclosure). Delivers strong mechanical retention and provides an effective environmental seal on the cable’s outer sheath.

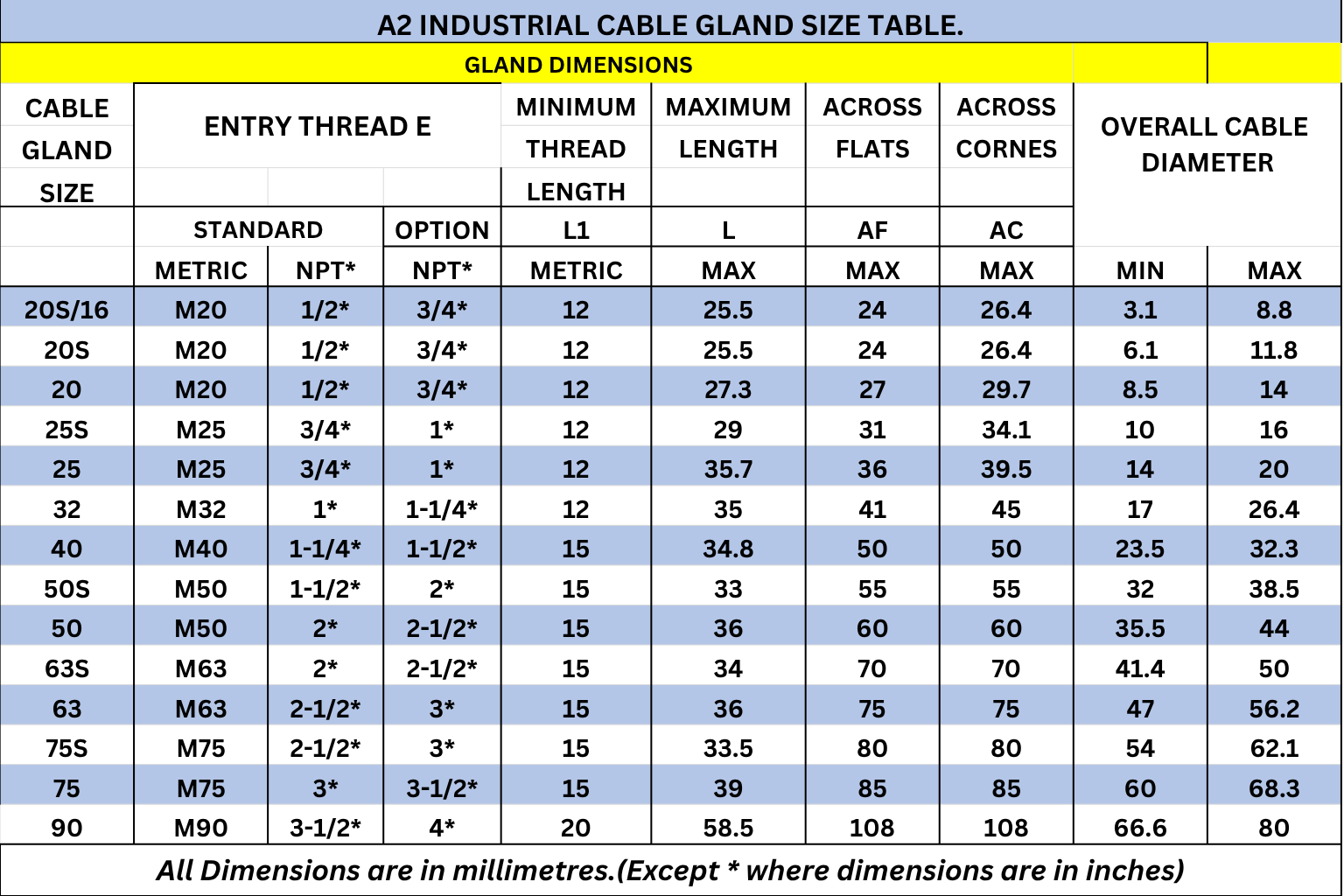

Technical Data
Type A2 INDUSTRIAL CABLE GLAND
Size 16MM TO 90MM
Applications Provide Mechanical Cable Retention, & Electrical continunity via Armoured Wire, termination In indoor area. It is Easy to Install.
Operating Temperature -60u00b0C To +180u00b0C.
Material Brass (BS EN 12164/ Grade CuZn39Pb3)
Seal Material Thermoset Elastomer
Standard Thread ISO Metric
Cable Type Unarmoured & Braided.
Sealing Technique Inner Displacement Seal
Sealina Area Cable Outer Sheath
Optional Gland Material Brass Nickel Plated, Aluminium
Optional Accessories. Adaptor, Reducer, Earth Tag, Lock Nut, Serrated Washer, Shroud
Cable Gland Kit 1 Cable Gland, 1 Lock Nut, 1 Earth Tag, 1 PVC Shroud
